Node labels (single-line, user-editable)

Nodes support a floating single-line textbox drawn above the node.

  • User-editable. The label is a QDMGraphicsNodeLabel (QGraphicsTextItem) child of the graphics node, so it follows node moves/drags automatically. Click to focus/edit, Enter commits, Escape reverts, focus-out commits.
  • Code can set it at creation time and at runtime.

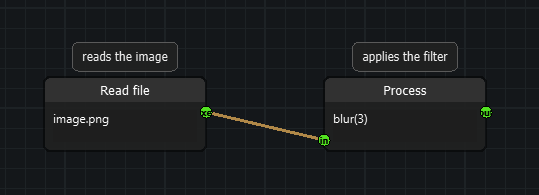

Two nodes with a floating label above each

Usage

node.setNodeLabel("intake valve")
assert node.getNodeLabel() == node.grNode.labelText() == "intake valve"

# hide / show (empty text always hides)
node.setNodeLabelVisible(False)
node.setNodeLabelVisible(True)

# gap between node top and label, px
node.setNodeLabelOffset(12)

# remove
node.clearNodeLabel()

# styling (optional)
node.grNode.setLabelColor("#ffffff")
node.grNode.setLabelFont(my_qfont)
node.grNode.setLabelBackground("#E3212121", "#FF5A5A5A")

# change notification (emitted on user commit and setNodeLabel)
node.labelChanged.connect(lambda text: print("label:", text))

Single-line is enforced: \r/\n are replaced with spaces and the result is stripped, both for programmatic sets and user commits.

How it works

  • QDMGraphicsNode.initLabel() / QDMIconGraphicsNode.initLabel() create a QDMGraphicsNodeLabel parented to the graphics node (nodeeditor/node_graphics_node.py). Child items move with the parent, so no position tracking is needed; _updateLabelPos() only recenters it above the node after text/size changes.
  • The label is ItemIsFocusable with TextEditorInteraction, but ItemIsSelectable/ItemIsMovable unset and no .node attribute, so rubber-band selection, node drag, and Scene.getSelectedNodes() are unaffected.
  • Focus in/out sets view.editingFlag (same convention as nodeeditor/node_content_widget.py) for apps that gate shortcuts while typing.
  • User commits go through QDMGraphicsNodeLabel._commit() -> grNode._onLabelEdited(), which emits Node.labelChanged and stores "Node label changed" history. Node.setNodeLabel(..., store_history=True) does the same for programmatic changes; deserialize passes False.
  • Node.serialize() stores 'label_text', 'label_visible', 'label_offset'; Node.deserialize() restores them with data.get(...) defaults, so old .tds files without the keys load with no label. Clipboard (Node.serialize round-trip) and file save/load preserve the label.
